INTEGRATED CHASSIS / FOR RV MANUFACTURERS

Your next RV
starts here.

A towable chassis with running gear, energy, water and climate already on board. You build the body.

View dimensions & specifications ↓

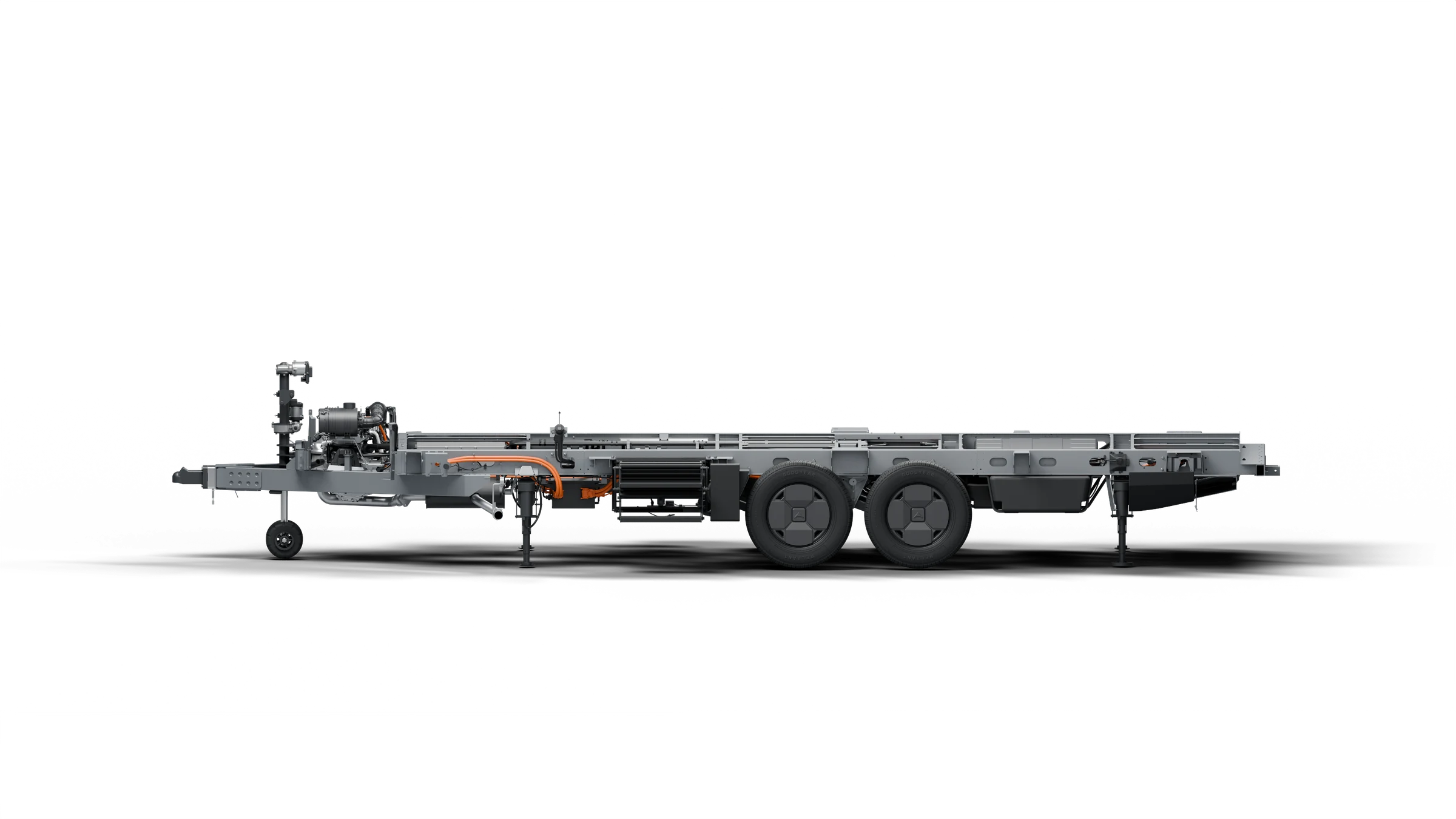

Aboard chassis side viewSIDE → TOP / 4° ELEVATION / DESIGN RENDER
THE PLATFORM

Mobility, energy, water and climate arrive installed, tested and connected to one controller.

Built-in systems
01 Mobility≤ 10,000lbGVWR target, towable

Tandem torsion suspension, electro-mechanical brakes, remote self-propelled maneuvering.

02 Energy41.86kWhLFP battery

Plus a 50 kW range extender. Up to 200 kWh total with fuel.

03 Water53galFresh water

34 gal grey, 30 gal black, 7.1 gal hot-water storage.

04 Climate7 / 8kWCooling / heating

Heat pump with a radiant floor heating loop.

Design values, Partner Guide Rev. 1.0.Full specifications ↗

01 / PLATFORM ENVELOPE

Know what
you can build.

The space your body can use, measured on the chassis as designed.

Full technical specificationsDimensions · mass · running gear · energy · utilities ↗
Your build space
Usable deck≈ 18.9ftBehind the front equipment bay
Upfit & payload≈ 5,590lbBody, equipment and cargo
Deck height≈ 31.5inAbove ground, laden and leveled
Chassis mass≈ 4,410lbIncluding fresh water and fuel
SIDE PROFILE / REFERENCE ENVELOPE
Aboard chassis side profileFront equipment bayUsable deck ≈ 18.9 ft behind the front bayDeck top ≈ 31.5 in above ground, laden & leveled225/75R16 tyres · tandem axle

Callouts on a design render. Released drawings govern.

Body width
8 ft
Rail spacing
≈ 60.2 in
Ground clearance
≈ 13.6 in
Departure angle
≈ 12.5°

8 ft is the reference body width, not the chassis width. “25 ft” is the platform designation.

Dimensions to confirm for your build ＋
Overall chassis length and width
Dimensioned drawing required
Axle positions and mounting coordinates
Interface drawing required
Axle, coupling and CG limits
Configuration review required
Check your preliminary upfit mass budget ＋
PRELIMINARY MASS BUDGET

Build your requirement
before selecting a rating.

Add up what your body will carry. A worksheet only; it does not confirm capacity or towing.

Enter estimates to calculate your requirement.Compare with the ≈ 5,590 lb upfit budget. *Only fluids not already in the chassis baseline. Axle, coupling and GVWR limits are checked separately.
02 / INTEGRATED SYSTEMS

Living systems.
Integrated below.

Four system groups come installed. You connect your body to them.

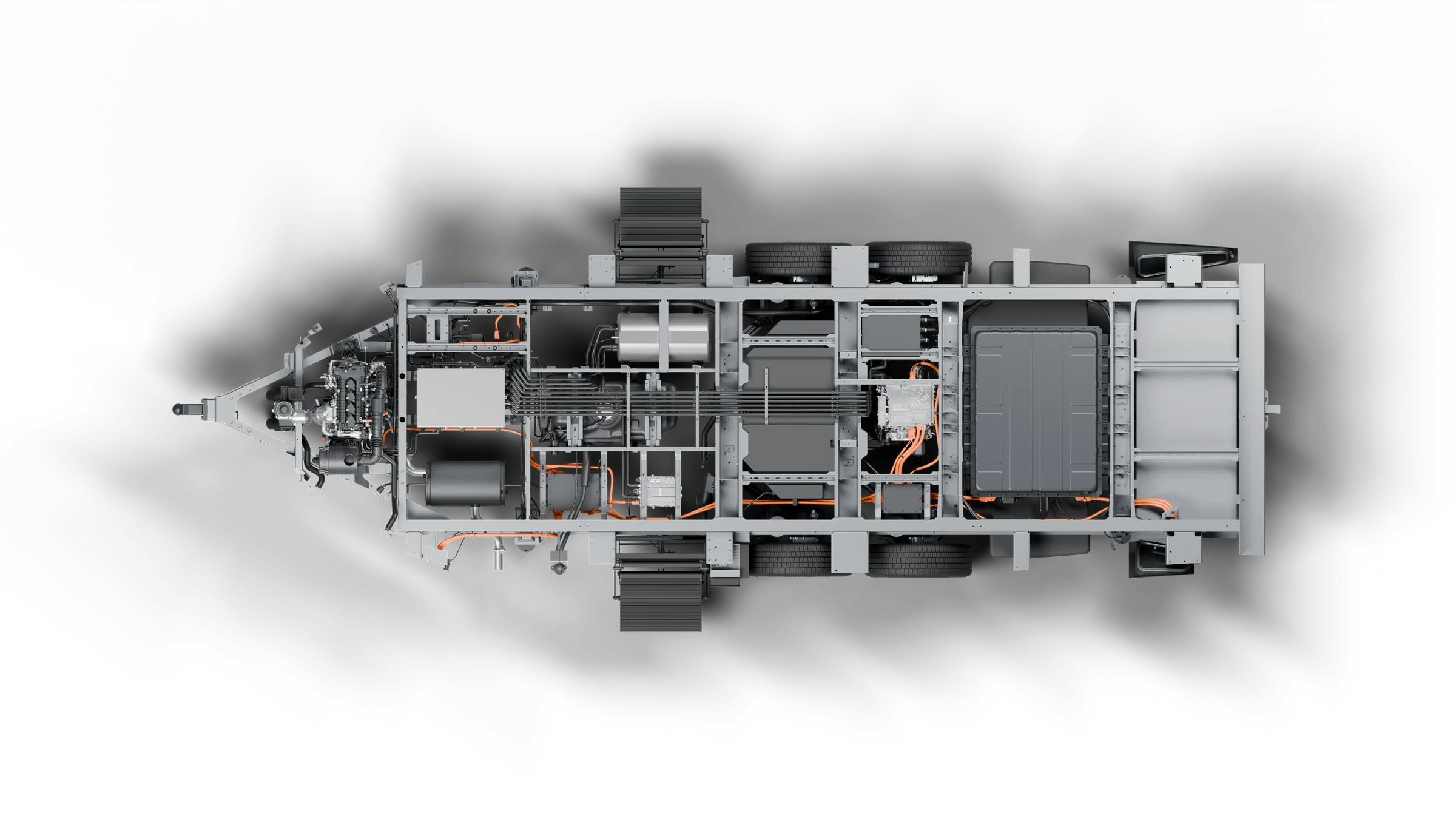

Chassis system overview, plan viewPLAN VIEW / DESIGN RENDER

Tandem independent torsion suspension, electro-mechanical brakes (EMB) and automatic leveling. Remote, self-propelled maneuvering with hitch assist.

Charging, hot water and total energy ＋

Charging and outlets
NACS inlet; 120 / 240 V AC outlets. DC output to EVs up to 50 kW is in validation.

Hot water and heating
≈ 7.1 gal hot-water storage and a radiant floor heating loop.

Total energy
Up to 200 kWh: 13.2 gal fuel (≈ 160 kWh) plus battery. Not battery capacity or guaranteed runtime.

SYSTEMS / IN DETAIL

Look closer
at the engineering.

Six assemblies your body design works around.

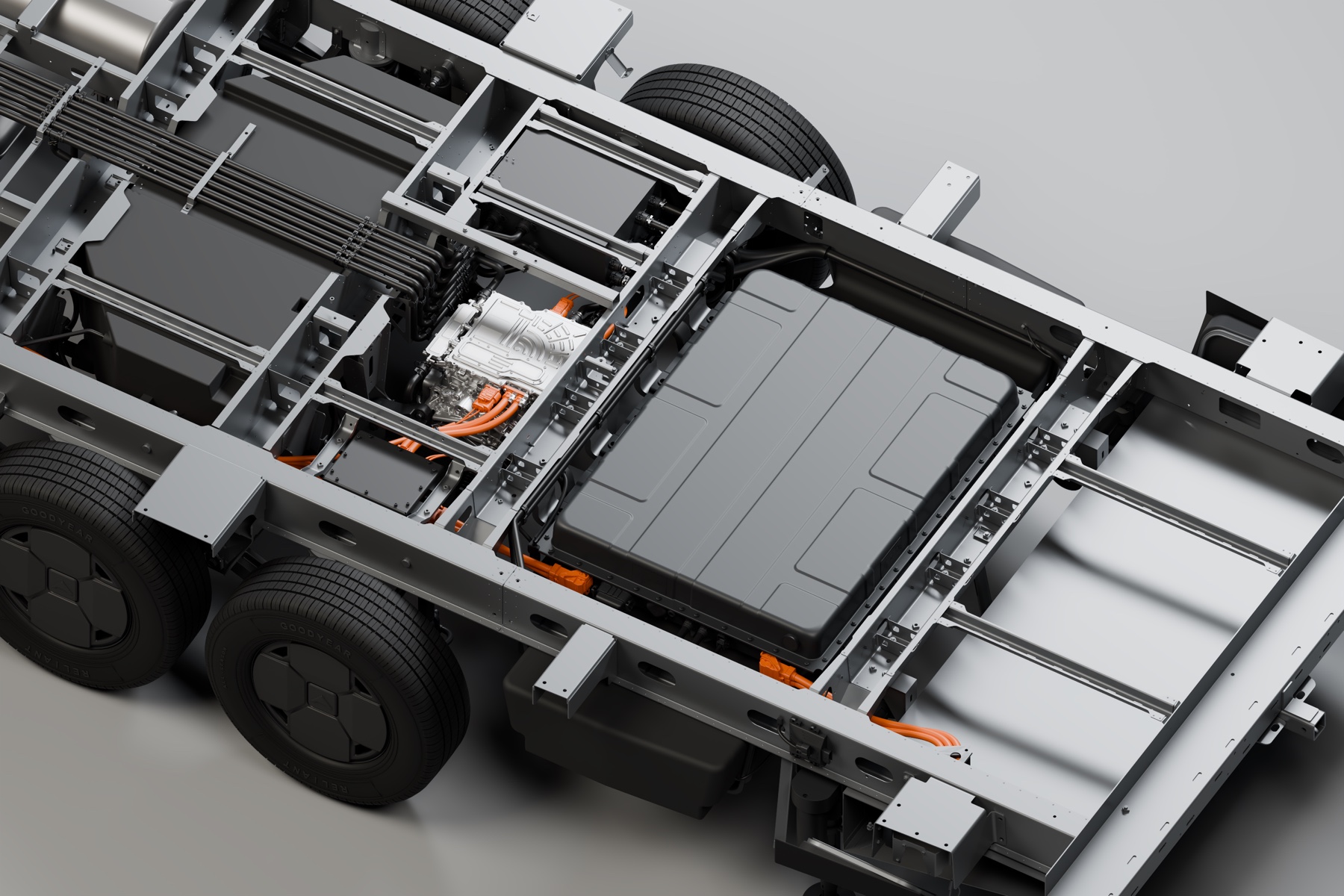

Battery enclosure and high-voltage cable routingFULL-SIZE ↗
01 / BATTERY

Power beneath the floor.

Battery
41.86 kWh LFP
Total energy
Up to 200 kWh
Charging
NACS inlet
AC outlets
120 / 240 V

Leave room forFloor mounting and cable routes around the pack, with service access.

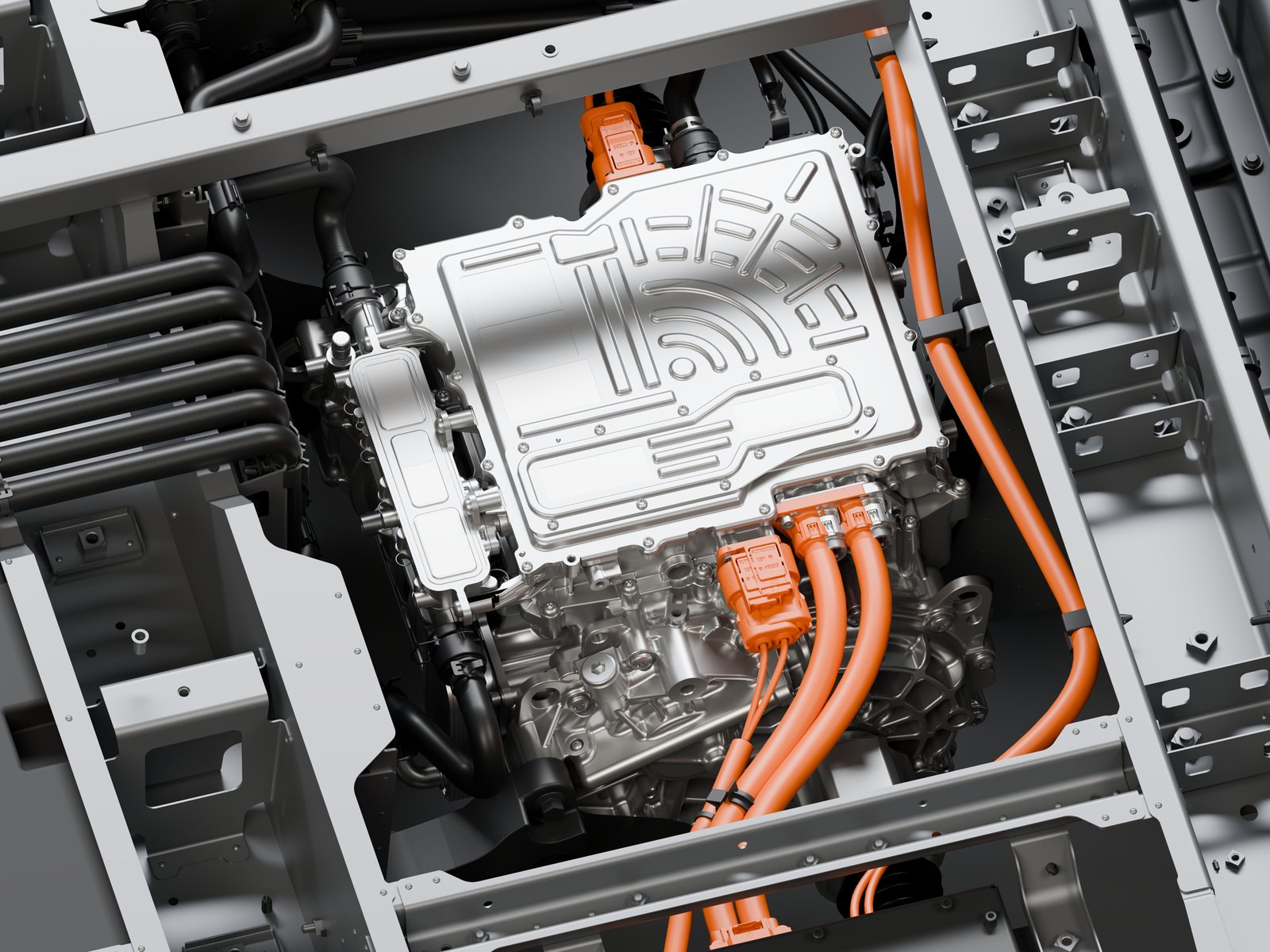

Electric drive unit installed in the frameFULL-SIZE ↗
02 / ELECTRIC DRIVE

Moves itself on site.

Drive
Electric
Maneuvering
Remote, self-propelled
Precision
Centimetre-level creep
Control
Vehicle controller

Leave room forDrive-unit service access and high-voltage cable routes.

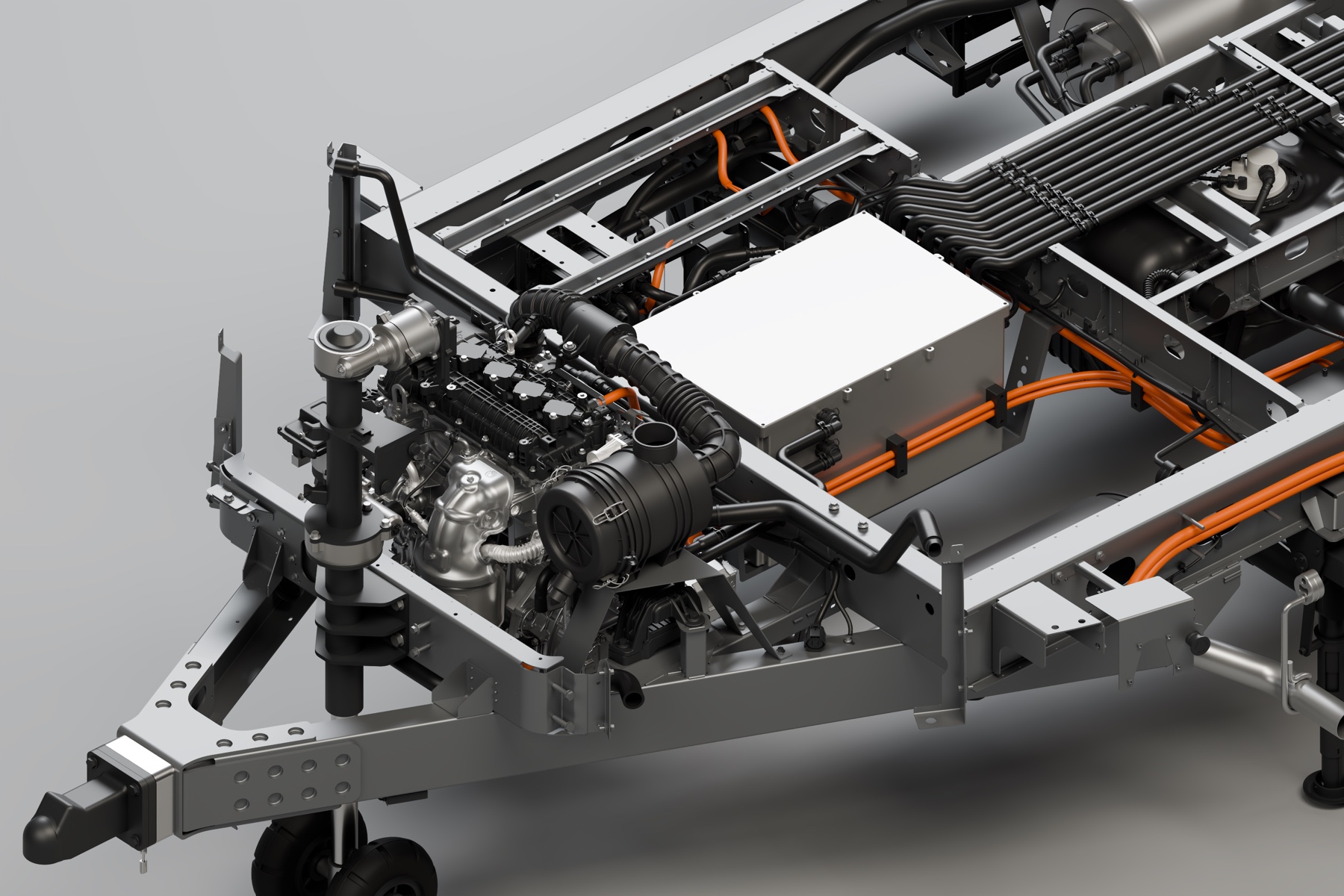

Front range-extender equipment bayFULL-SIZE ↗
03 / RANGE EXTENDER

Generation in the front bay.

Engine
1.5 L gasoline
Output
Up to 50 kW
Fuel tank
13.2 gal
EPA / CARB target
Jul–Aug 2027

Leave room forVentilation, exhaust clearance and service access.

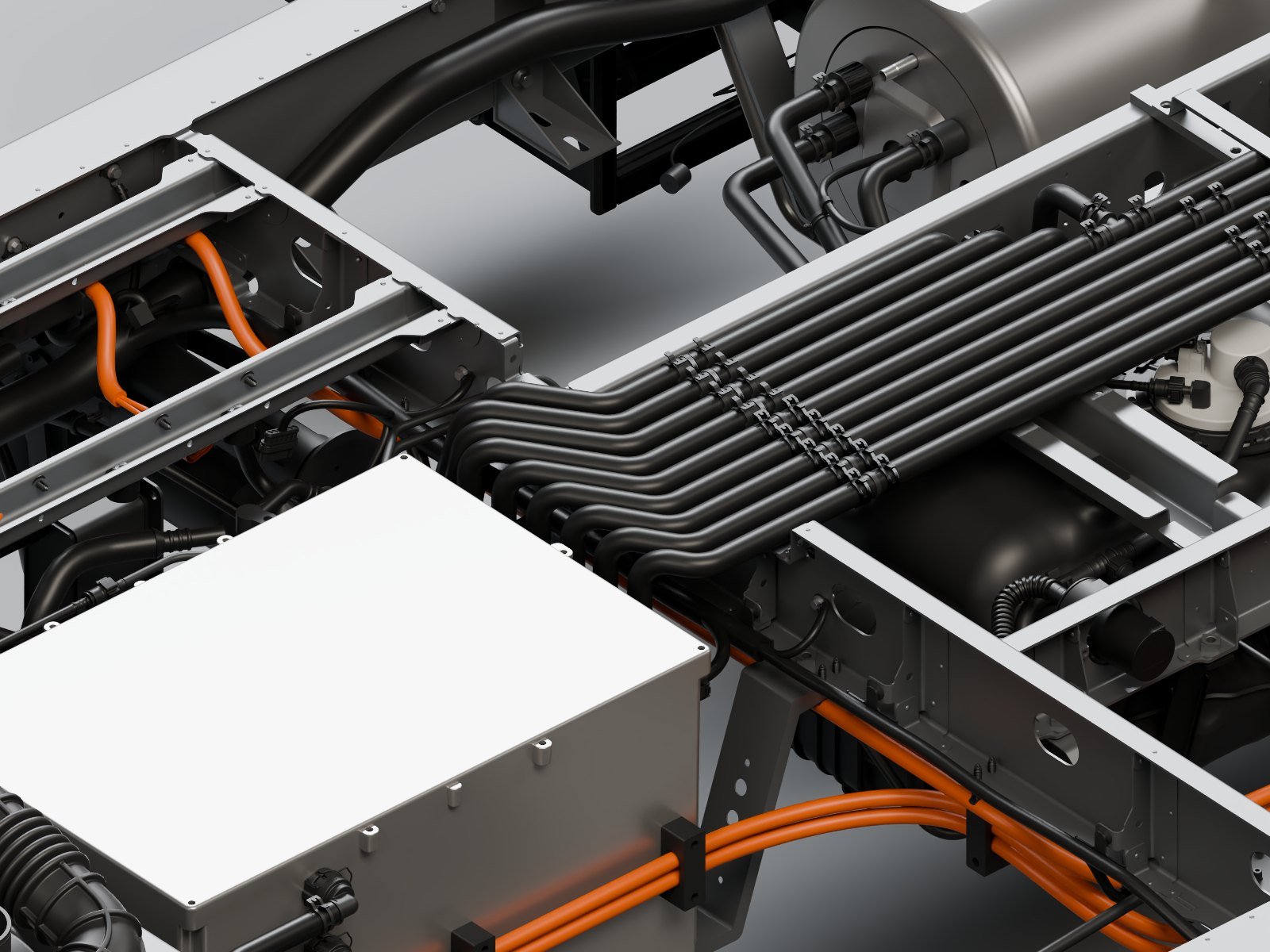

Thermal-system lines routed along the frameFULL-SIZE ↗
04 / THERMAL MANAGEMENT

Heat pump, shared loop.

Cooling
≈ 7 kW
Heating
≈ 8 kW
Floor heating
Radiant loop
Battery
Shared thermal loop

Leave room forAir distribution, insulation and floor panels.

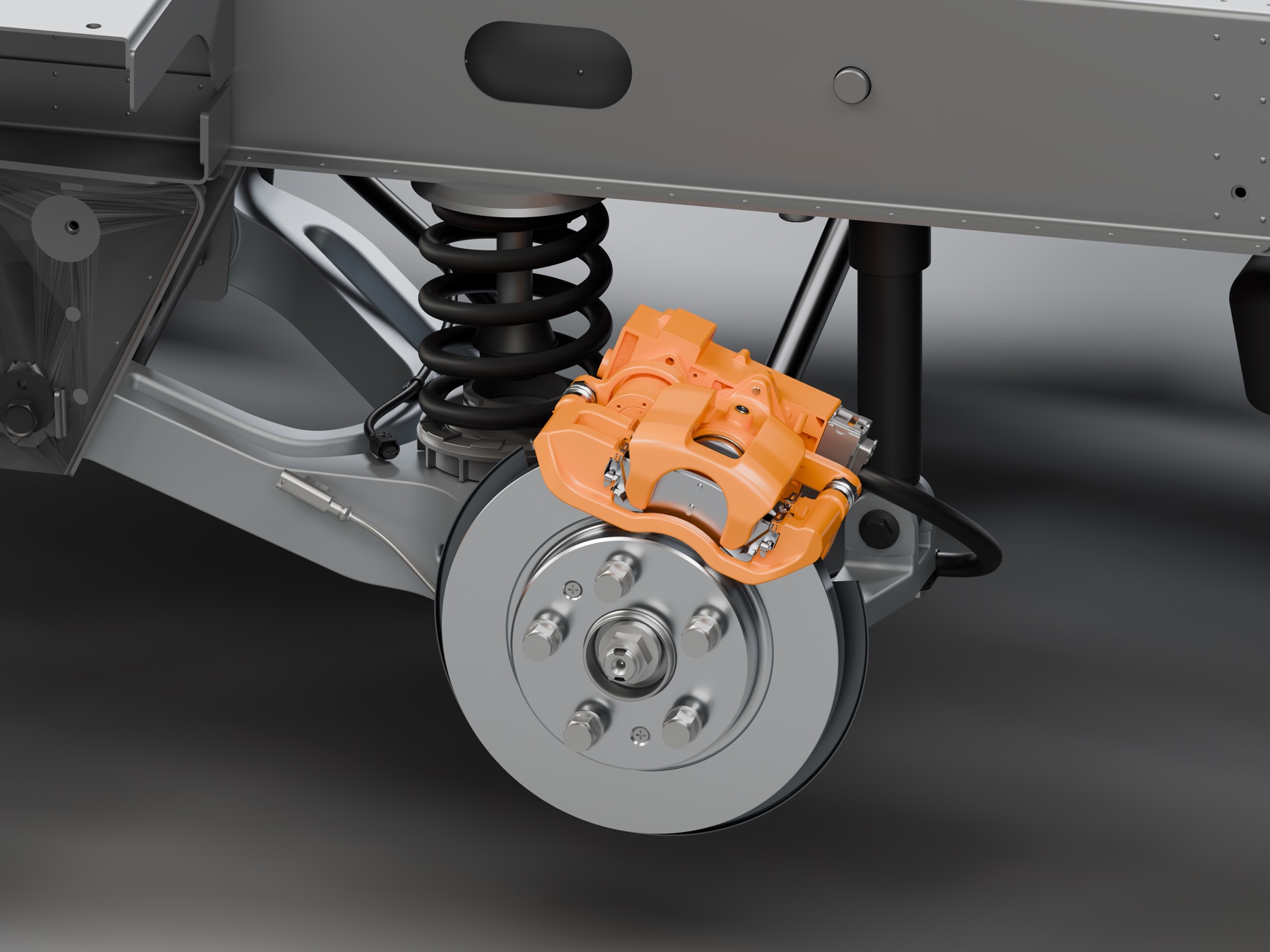

Electro-mechanical brake caliper and discFULL-SIZE ↗
05 / BRAKES

Brakes with ABS and anti-sway.

Brakes
Electro-mechanical (EMB)
ABS
Supported
Anti-sway
Supported
Parking brake
Electric

Leave room forWheel-end travel, wheel removal and brake service.

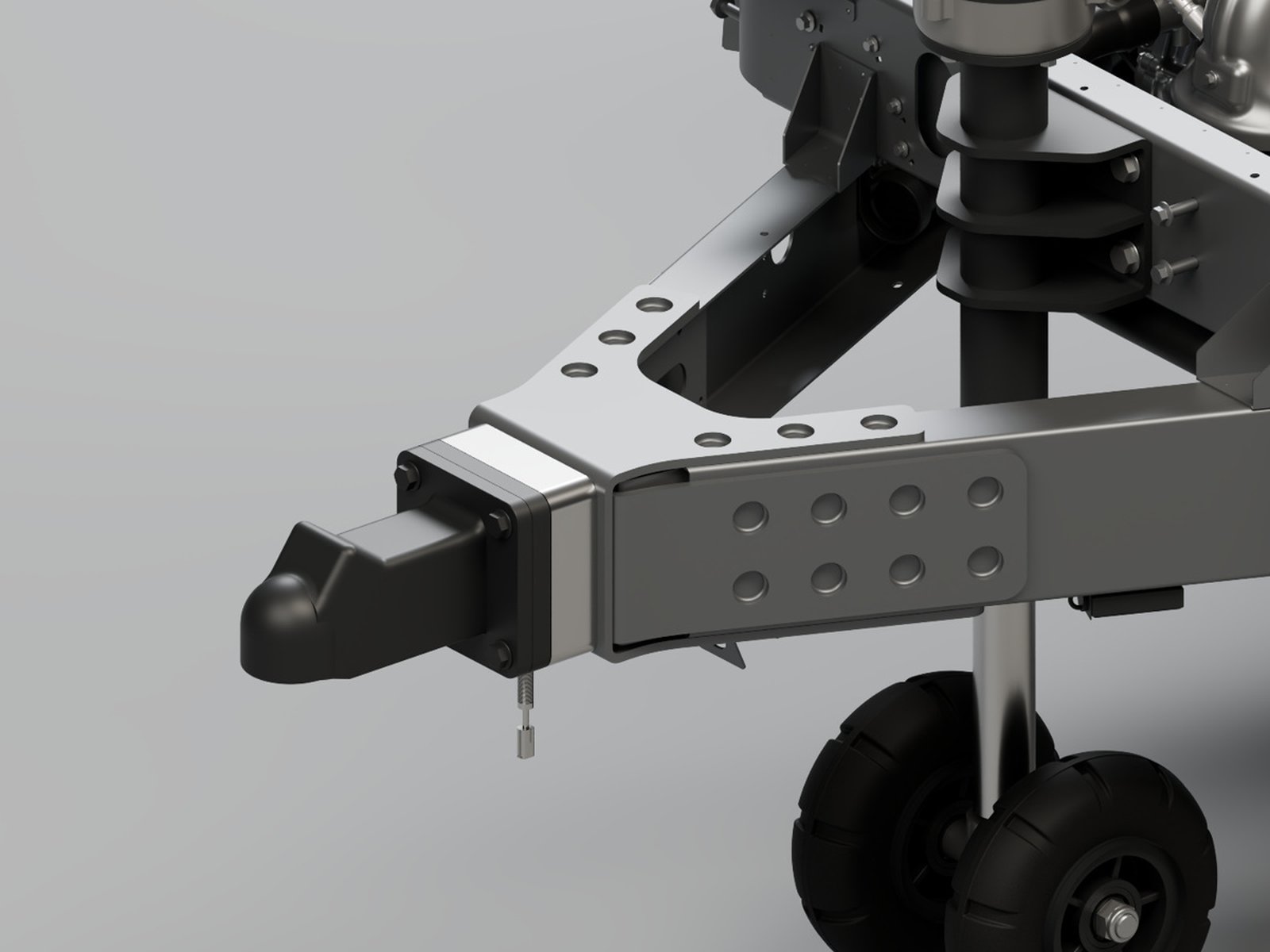

Smart coupler and front support wheelFULL-SIZE ↗
06 / ASSISTED DRIVE & HITCH

Hitching made easy.

Coupling
Hitch assist
Leveling
Automatic
GVWR target
≤ 10,000 lb
CA licence
Standard Class C

Leave room forTow-vehicle clearance at the front of the body.

03 / PRODUCT OPPORTUNITIES

Build the RV
your customers need.

One platform, four product directions.

01 / TRAVEL

Off-grid travel trailers

Combine battery storage and onboard generation around the cooking, refrigeration and climate loads of your travel trailer.

02 / FAMILY

Premium family RVs

Develop sleeping, seating and storage layouts alongside the integrated water and climate systems.

03 / EQUIPMENT

Adventure & toy haulers

Plan living space, equipment storage and charging together. Check axle and coupling loads across loaded and unloaded conditions.

04 / EXTENDED STAY

Destination trailers

Configure utilities for longer stays while retaining a towable platform and a defined setup procedure.

04 / OEM INTEGRATION

Your body. Your brand.
Clear engineering boundaries.

You own the product. We agree interfaces, supply scope and validation before the first prototype.

INTERFACE STUDY
POWERCLIMATEWATERCONTROL01 / YOUR BODY + INTERIOR02 / SHARED INTERFACES03 / ABOARD PLATFORMSCHEMATIC / NOT AN ASSEMBLY DRAWING
ABOARD / PROPOSED SCOPE

Platform systems

Running gear, battery, range extender, tanks, heat pump and controller.

  • Chassis and energy configuration
  • Water and thermal coordination
  • Documentation and commissioning
JOINT ENGINEERING

Vehicle integration

Interfaces and a vehicle-level verification plan.

  • Mounting, axle loads and CG
  • Power, plumbing and control
  • Validation and certification
RV MANUFACTURER

Your product

Body, interior and the finished vehicle under your brand.

  • Body and interior engineering
  • Body-level certification
  • Dealer and customer service
05 / DEVELOPMENT STATUS

See where
the platform stands.

STATUS SOURCE: PARTNER GUIDE REV. 1.0 / TEST REPORTS NOT ATTACHED
Complete chassis, elevated three-quarter design render
  1. 01Prototype and testing

    The partner guide reports a full-function prototype, water and thermal validation, and completed seasonal, altitude and durability testing.

  2. 02Regulatory work

    U.S. bench testing is reported in progress. Range-extender EPA / CARB certification is scheduled for July–August 2027.

  3. 03Planned supply

    Pilot units: H1 2027. First chassis deliveries: August–September 2027. Timing is subject to program confirmation.

06 / START A PROGRAM

Define your next
vehicle with us.

Send your target dimensions, body mass and timeline. We start with an engineering fit review.

01

Define

Vehicle and market

02

Integrate

Interfaces and loads

03

Validate

Joint prototype plan

04

Plan supply

Volume and service
